The 33kV Outdoor Metering Combined Set (Dead Tank Type) CT-PT Set is a high-voltage electrical measurement and protection system designed for outdoor installation in substations or distribution areas. This system combines the functions of current and potential transformers in a single, dead tank type enclosure, providing accurate and reliable measurement and protection of high-voltage electrical systems.
- Rajiv Gandhi Nagar
Prashnathi Nagar, Kukatpally
- 9553361951
9440089709, 8919551819
- 08:00am to 08:00pm
Sunday Closed

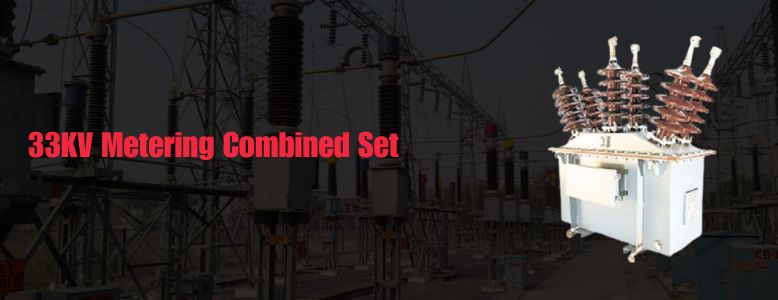

33KV Metering Combined Set
Key Features :
- Rated voltage: 33kV
- Frequency: 50/60Hz
- Measurement Accuracy: Class 0.5/1.0 for current and voltage measurement
- Protection Functions: Over current, Earth Fault, Overvoltage, Under voltage, and Phase Displacement Protection
- CT Ratio: Variable (dependent on customer requirements)
- PT Ratio: Variable (dependent on customer requirements)
- Insulation Level: 140kV (1min)
- Power Loss: Low power loss design for reduced energy consumption
- Enclosure: Dead tank type, oil or gas insulated, IP67 protection
- Operating Temperature: -40°C to +50°C
- Dimensions: (dependent on customer requirements)
Applications :
- High-voltage electrical substations
- Power transmission lines
- Distribution networks
- Industrial power systems
- Renewable energy systems
